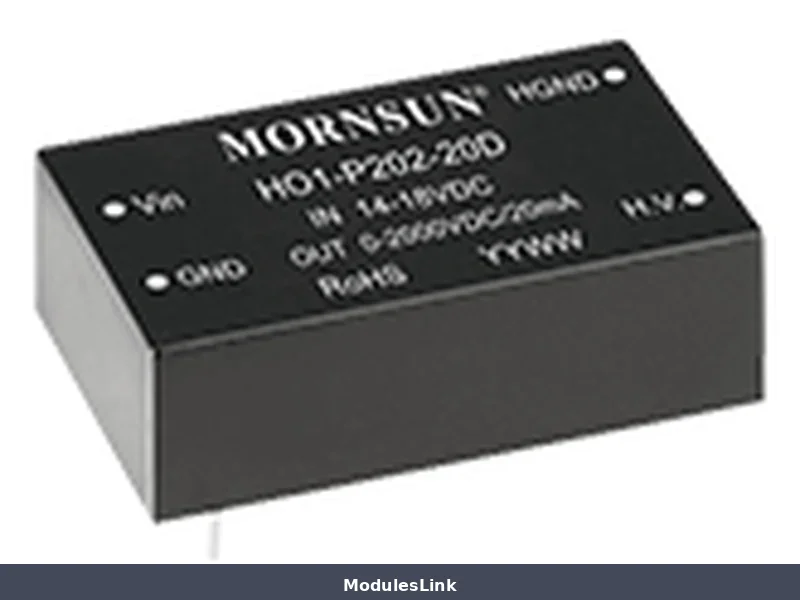

DIP (1-75W) – 1-75W DC-DC Wide Input Converter

Key Features

• DIP package, industry standard pinout
• 1-75W output power
• 3000-6000VDC isolation voltage
• Wide input voltage range 2:1 or 4:1
• Operating temperature -40°C to +105°C
• Continuous short-circuit protection

DIP (1-75W) Model Specifications

Applications

• Distributed power architectures
• Battery-powered and portable devices
• Railway and transportation systems
• Telecom base station power

Product Overview

The DIP (1-75W) is a professional-grade dc-dc wide input converter designed for demanding industrial environments. With a power range of 1-75W, this series offers 30 models with various output voltages to meet diverse application requirements. Key advantages include wide input voltage range, making it suitable for industrial automation, control systems, and embedded applications. All models are ce certified, cb certified, ul certified, cqc certified, rohs certified, reach certified certified, ensuring compliance with international safety and EMC standards. ModulesLink manufactures each unit under strict quality control with 100% load testing and burn-in procedures.

Technical Details

The DIP series features dc-dc wide input converter architecture with input range of 24(16-32)VDC / 48(30-60)VDC / 24(9-40)VDC / 5(4.5-9)VDC / 12(9-18)VDC / 24(18-36)VDC, providing output options of 2.5,3.5 VDC, 3.3 VDC, 5 VDC, 6 VDC, 9 VDC, 12 VDC, 15 VDC, 24 VDC, 28 VDC, ±5 VDC, ±9 VDC, ±12 VDC, ±15 VDC at up to — efficiency. The robust design incorporates comprehensive protection circuits including overcurrent protection (OCP), overvoltage protection (OVP), overtemperature protection (OTP), and short-circuit protection. The high isolation voltage ensures safe operation in noisy industrial environments, while the wide operating temperature range guarantees reliable performance in harsh conditions. Each model undergoes 100% electrical testing and aging tests before shipment.

Quality & Reliability

ModulesLink implements a rigorous quality management system certified to ISO 9001 standards. The DIP series carries CE certified, CB certified, UL certified, CQC certified, RoHS certified, REACH certified certifications, demonstrating compliance with IEC/EN/UL safety standards and RoHS/REACH environmental regulations. Every power supply is subjected to 100% load testing, hi-pot testing, and thermal cycling before leaving the factory. The mean time between failures (MTBF) exceeds 500,000 hours under nominal conditions at 25°C ambient temperature. ModulesLink offers a 3-year warranty on all industrial-grade power supplies, reflecting confidence in product reliability.

Ordering Information

To order DIP (1-75W) models, select the appropriate output voltage and power rating from the model list above. Each model number follows a standardized naming convention indicating output parameters. For OEM/ODM inquiries, custom output voltages, modified mechanical dimensions, or special input ranges can be accommodated with minimum order quantities (MOQ). Contact ModulesLink sales team through the Request Quote button for pricing, lead time, and technical support. Samples are available for qualified customers to evaluate before volume orders.
