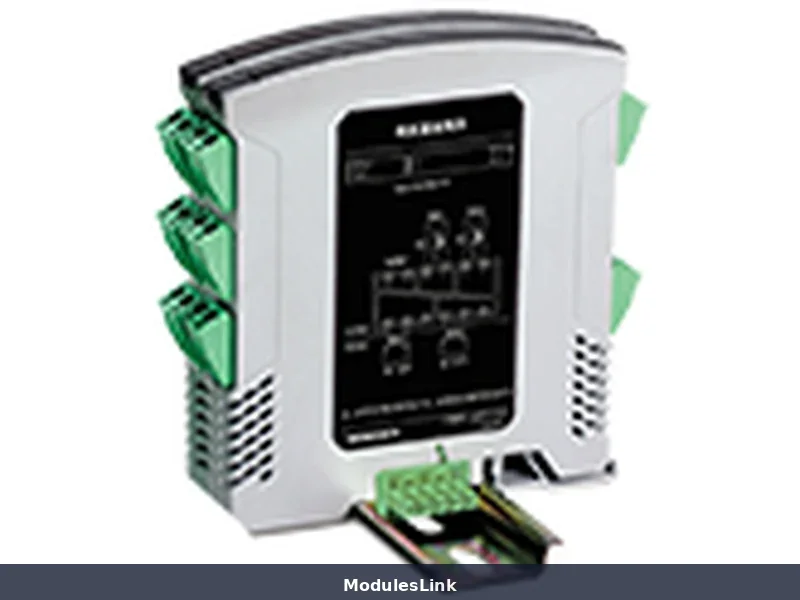

Passive Signal Isolator – 0.5W Signal Isolator Module
Signal Isolator Module series, 1 Models. 3000VAC isolation voltage. CE certified, CB certified, UL certified, CQC certified, RoHS certified, REACH certified.
Key Features
- Passive signal isolation, no power supply needed
- Up to 3000VAC isolation voltage
- One-in-one-out isolation
- High accuracy ±0.2%
- Operating temperature -40°C to +70°C
- 4-20mA input/output loop-powered
Passive Signal Isolator Model Specifications
| Model | Power | Input | Output | Current | Efficiency | Isolation |
|---|---|---|---|---|---|---|
| Passive Signal Isolator | 0.5W | 4-20mA | 4-20mA | 20mA | 90% | 2kVDC |
Applications
- Analog and digital signal isolation
- Process control loop protection
- PLC I/O module interfacing
- Noise rejection in industrial environments
Product Overview
The Passive Signal Isolator is a professional-grade signal isolator module designed for demanding industrial environments. With a power range of 0.5W, this series offers 1 model with various output voltages to meet diverse application requirements. Key advantages include 3000vac isolation voltage, making it suitable for industrial automation, control systems, and embedded applications. All models are ce certified, cb certified, ul certified, cqc certified, rohs certified, reach certified certified, ensuring compliance with international safety and EMC standards. ModulesLink manufactures each unit under strict quality control with 100% load testing and burn-in procedures.
Technical Details
The Passive Signal Isolator series features signal isolator module architecture with input range of 4-20mA, providing output options of 4-20mA at up to 90% efficiency. The robust design incorporates comprehensive protection circuits including overcurrent protection (OCP), overvoltage protection (OVP), overtemperature protection (OTP), and short-circuit protection. The high isolation voltage ensures safe operation in noisy industrial environments, while the wide operating temperature range guarantees reliable performance in harsh conditions. Each model undergoes 100% electrical testing and aging tests before shipment.
Quality & Reliability
ModulesLink implements a rigorous quality management system certified to ISO 9001 standards. The Passive Signal Isolator series carries CE certified, CB certified, UL certified, CQC certified, RoHS certified, REACH certified certifications, demonstrating compliance with IEC/EN/UL safety standards and RoHS/REACH environmental regulations. Every power supply is subjected to 100% load testing, hi-pot testing, and thermal cycling before leaving the factory. The mean time between failures (MTBF) exceeds 500,000 hours under nominal conditions at 25°C ambient temperature. ModulesLink offers a 3-year warranty on all industrial-grade power supplies, reflecting confidence in product reliability.
Ordering Information
To order Passive Signal Isolator models, select the appropriate output voltage and power rating from the model list above. Each model number follows a standardized naming convention indicating output parameters. For OEM/ODM inquiries, custom output voltages, modified mechanical dimensions, or special input ranges can be accommodated with minimum order quantities (MOQ). Contact ModulesLink sales team through the Request Quote button for pricing, lead time, and technical support. Samples are available for qualified customers to evaluate before volume orders.
